REACH & RoHS Compliance Testing and Certification
REACH & RoHS Compliance Testing and Certification
Chances are you’ve heard of “REACH” and “RoHS” if you’ve considered importing goods into the EU over the past decade.
But despite the prevalence of these acronyms, the specific requirements of these regulations are still a mystery to many importers. Who needs to comply with which regulation? What are importers responsible for under REACH vs. RoHS? And what are the potential consequence of noncompliance.
It doesn’t help that the regulations are continually changing. New compliance requirements under RoHS 2 and RoHS 3 will be implemented in July 2019 and will impact all producers regulated under the standard. New restricted substances, marking requirements and regulated product types have been added to the directive.
And the European Chemicals Agency (ECHA) recently announced it will quadruple the number of REACH compliance checks it conducts, making REACH testing and compliance more important than ever.
So what requirements do you need to comply with? Let’s take a look at each of the standards in detail so you can be sure your goods are fully compliant for the EU market.
WHAT IS REACH?
Regulation (EC) No 1907/2006, commonly known as REACH, was adopted in the European Union to protect humans and the environment from chemical risks. REACH stands for Registration, Evaluation, Authorisation and Restriction of Chemicals. The REACH regulation came into force on June 1st, 2007 and has since become a major requirement for regulatory compliance in the EU.
REACH requirements apply to the production and use of all chemical substances. You might not think your product includes chemicals. Products like clothing and furniture certainly don’t intuitively fit into the “chemicals” category.
But REACH requirements apply not only to chemicals used in industrial processes, but also to chemicals in products consumers use throughout their daily lives. REACH requirements apply to consumer goods like cleaning products, paints, clothes, furniture, toys and electrical appliances.
As an EU regulation, REACH requirements and enforcement are consistent across all 28 EU member states and are immediately enforceable upon enactment.
What are the REACH SVHCs?
REACH requirements regulate the use of chemical “substances of very high concern”, commonly abbreviated as SVHCs.
Substances typically classified as a REACH SVHC include those which:
- Are carcinogenic, mutagenic or toxic for reproduction(together known as CMR substances)
- Are persistent, bioaccumulative and toxic(PBT substances), meaning harmful chemicals that do not break down easily in the environment
- Pose other serious hazards to human health or the environment identified on a case-by-case basis
The EU controls the use of REACH SVHCs through three classification stages:
- Candidate List : Substances that may eventually be included in the Authorisation List. These substances should not be present in a concentration of more than 0.1 percent w/w (weight per weight) in a product. Importers with products containing higher concentrations may need to provide a safety data sheet for compliance. This list currently includes 197 substances.
- Authorisation List(Annex XIV) : Substances importers cannot use or import into the EU without prior authorization from the ECHA after a set “sunset date”. This list currently includes 69 unique substances.
- Restriction List(Annex XVII) : Substances presenting an unacceptable risk to human health or the environment. Use of these substances is fully restricted, and importers cannot receive authorization to use these substances.
Importers can still use substances included in the Candidate List or Authorisation List in their products if they comply with the EU’s compliance requirements. But the EU generally encourages importers to find ways to substitute and phase out these substances in their products in the long term.
Further REACH compliance requirements
WHAT IS ROHS?
- Home appliances
- Small household appliances
- IT and telecommunications equipment
- Consumer electronics
- Lighting fixtures
- Electrical and electronic tools (except stationary, large industrial tools)
- Electric toys and sports and leisure equipment
- Medical devices (except all implanted and infected products)
- Monitoring and control instruments
- Automatic output devices
- Other electrical and electronic equipment
- Directive 2011/65/ EU, “RoHS-Recast” or “RoHS 2”, which replaced Directive 2002/95/EC
Hazardous substances restricted under RoHS
The RoHS Directive restricts the use of six hazardous substances in electrical products, including:
- Cadmium (Cd): < 100 ppm
- Lead (Pb): < 1000 ppm
- Mercury (Hg): < 1000 ppm
- Hexavalent Chromium: (Cr VI) < 1000 ppm
- Polybrominated Biphenyls (PBB): < 1000 ppm
- Polybrominated Diphenyl Ethers (PBDE): < 1000 ppm
Restricted substances may not compose more than 0.1 percent of any “homogeneous” material in the product to comply with the standard. This is the equivalent of 1000 ppm (parts per million). The one exception is for cadmium, which is limited to 0.01 percent or 100 ppm.
A homogenous material means a single substance that cannot be separated by mechanical actions such as unscrewing, cutting, crushing, grinding or abrasive processes. You might need to test multiple materials in your product if they could each contain restricted substances.

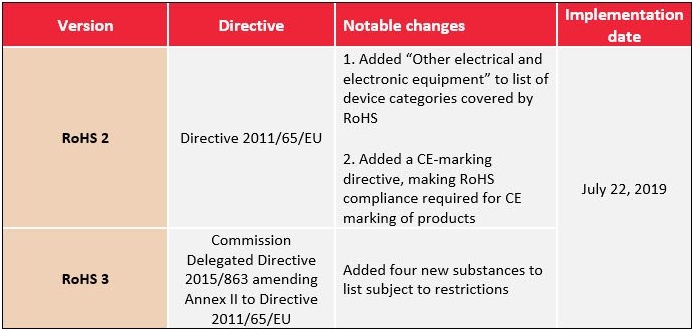

RoHS 2 and RoHS 3 updates
The original RoHS Directive restricts the use of the six hazardous substances above. Its replacement, RoHS 2, extended the list of electrical products RoHS covers.
RoHS 2 also makes RoHS compliance a requirement for CE marking and requires electrical, electronic and electromechanical (EEE) manufacturers to affix a CE mark to their finished products to show compliance. In doing so, the manufacturer declares that the product meets all the legal requirements for sale throughout the European Economic Area (EEA).
The latest amendment, sometimes called “RoHS 3”, will be implemented on July 22, 2019 and will add four new hazardous substances to the existing list:
- Bis (2-Ethylhexyl) phthalate (DEHP): < 1000 ppm
- Benzyl butyl phthalate (BBP): < 1000 ppm
- Dibutyl phthalate (DBP): < 1000 ppm
- Diisobutyl phthalate (DIBP): < 1000 ppm
These four substances are all phthalates used to soften plastics and can be found in cables, wiring, vinyl, synthetic rubber, adhesives, paints and other materials. These phthalates are already restricted in toys at a stricter limit under REACH standards, so this new requirement doesn’t apply to toys under RoHS.
Medical device importers have an additional two-year grace period to become compliant with the RoHS 3 requirements to ensure consumer safety during the transition.
ENSURING COMPLIANCE WITH REACH VS. ROHS TESTING REQUIREMENTS
- Manufactures and distributes electronic equipment under their own brand
- Resells equipment produced by other suppliers under their own brand
- Is responsible for importing or exporting applicable equipment into a nation covered by the RoHS Directive
REACH vs. RoHS testing requirements
Testing is not strictly mandatory for either RoHS or REACH compliance. But there is significant risk associated with skipping RoHS and REACH testing of your goods.
While Chinese and other Asian manufacturers are generally familiar with RoHS and REACH requirements, many of them have little visibility into or control over their own supply chain.
Sub-contracting is common and often necessary to acquire necessary raw materials and components. But manufacturers rarely have robust incoming quality control or auditing procedures to verify suppliers and their supplied goods.
Independent verification of product samples and finished goods is therefore a must for importers to reduce their risk and avoid liability issues. Lab testing is typically the best way to detect restricted substances and ensure the regulatory compliance of your goods. You should also obtain materials declarations and certificates of compliance for all suppliers in your supply chain.
For complete EU compliance, importers of electrical products need to perform testing for RoHS 3 requirements and all applicable requirements of the REACH regulation. RoHS testing alone is not enough to ensure REACH compliance for electrical products.
Common REACH testing methods
There are two common approaches to REACH testing:
- REACH SVHC screening:A quick indication of the presence of any SVHCs and their location within the product
- Testing according to Annex XVII Restricted List: Test for specific restricted substances according to your product type
Most importers start with a “screening” for REACH and RoHS testing, rather than a full quantitative analysis.
Screening is a more cost-effective option, as it primarily tests the parts of a product with the highest risk of containing restricted substances. There’s typically no need for further analysis if the screening doesn’t reveal any SVHCs.
This screening can include most or all substances on the REACH Restricted List and Authorised List for a total of over 180 substances. Or you can select specific substances to test for based on your product type and appetite for risk.

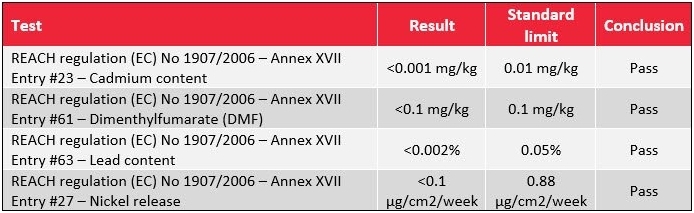

The testing report you receive from an independent laboratory should include the result for each test in comparison to the relevant standard:
Common RoHS testing methods
The RoHS testing process is similar to that for REACH testing:
- X-Ray fluorescence (XRF) screening: A quick indication of the presence of any hazardous substances and their location within the product
- Chemical analysis, if XRF screening highlights any potential nonconformities: Verifies any nonconformities found during XRF analysis
Importers will commonly start with the XRF screening and proceed from there according to the results.
You might want to test product samples before mass production begins to ensure the compliance of parts and materials to be used in the finished products. If your budget and timeline allow, lab professionals suggest conducting testing of finished production units, ideally first articles, before shipment as well.
By now you can tell that REACH and RoHS differ quite a bit in their purpose and scope. But the process to ensure REACH and RoHS compliance is largely similar for importers.
Before importing into the EU, be sure to carefully review the regulations that apply to your product. Once you’re ready to move forward with production, verify your supplier’s goods, rather than simply taking their word for it. RoHS and REACH testing will give you independent verification of the quality and safety of your supplier’s goods.
When it comes to REACH and RoHS compliance, don’t take a risk you can’t afford. Hiring a reliable and professional independent laboratory can help you detect any restricted substances in your product before they reach the EU and put your business at risk.
